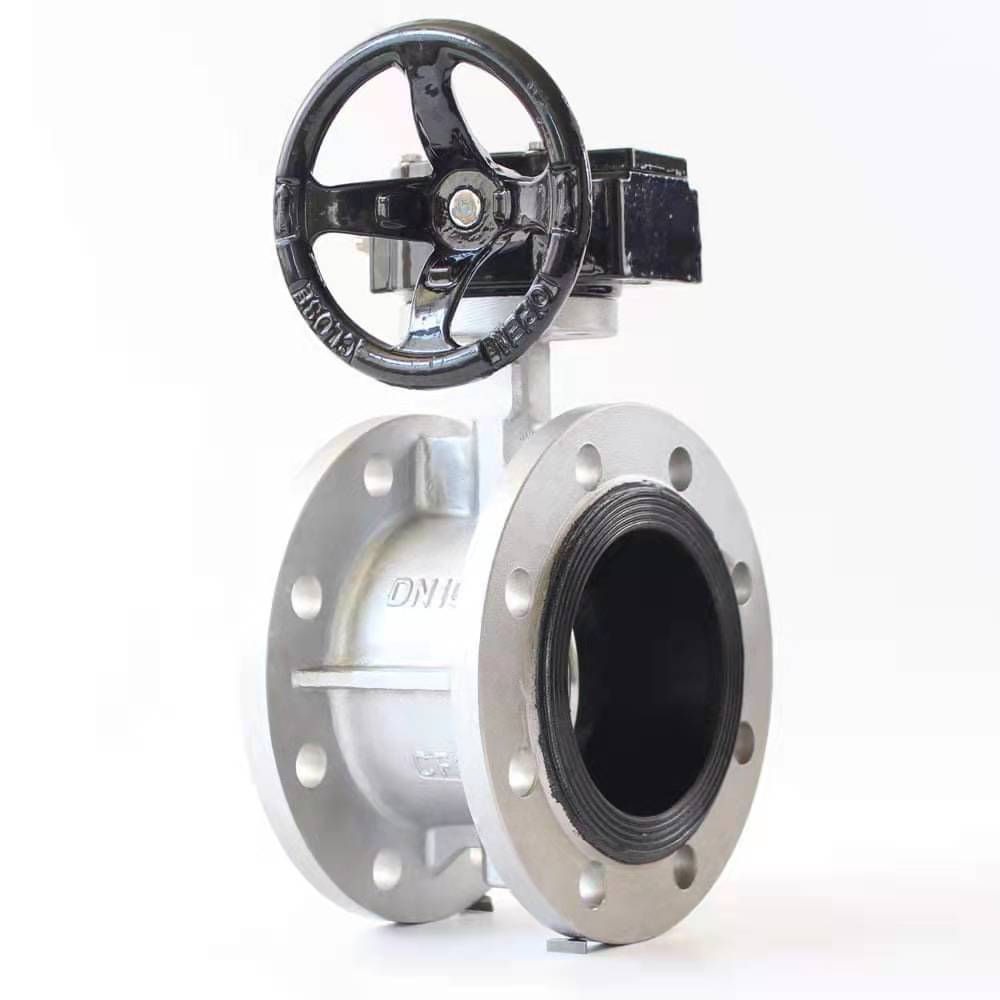

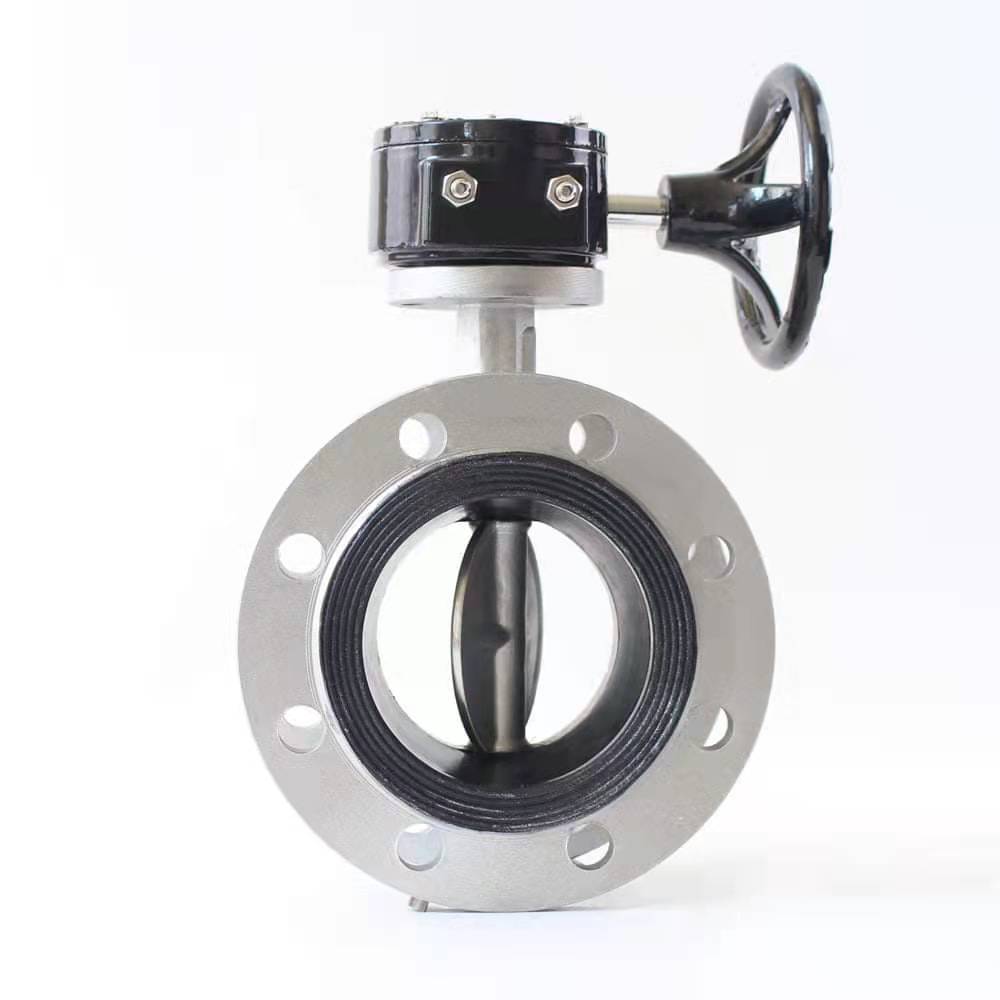

Flanged Type Stainless Steel Butterfly Valve DIN PN10-16 /ANSI 125/ANSI150

Resilient seated butterfly valve is a double flanged design which can be used for dead-end service .This butterfly valve series has many of the design features and benefits such as high Cv ratings ,minimum parts exposed to the line media ,greater reliability and a proven record of long service life .A major design advantage of this valve product lines is international compatibility.


  Contact Now
Product Details

This butterfly valve series has many of the design features and benefits such as high Cv ratings ,minimum parts exposed to the line media ,greater reliability and a proven record of long service life .A major design advantage of this valve product lines is international compatibility.




Size

DN100-DN1800

DN100-DN1800

Working pressure

16Bar

10Bar

Shell

24Bar

15Bar

Seal

18Bar

11Bar

Operating Temperature

-40℃~+160℃

Operating Environment

Ballast and bilge system          Chemical processing

Desalination plants   Drilling rigs    Drinking water

Dry powder     Food and beverage     Gas plants

HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry

Thermo technical water treatment   Waste water

Driving  method

Hand  Lever  Worm Gear  Electric  Pneumatic


Sizes:DN100-DN1800

Pressure Class:PN10 OR PN16

Design:API609 BSEN593 BS5155

Test: API598 ISO5208 EN12266-1

Flange Connection: DIN2501 PN10/16,ISO7005-2 PN10/16, EN1092-2 PN10/16,ANSI B16.5 class 150LB ANSI B16.47 Series A class 150LB,ANSI B16.1 MSS SP44 class150LB WAAW C207

Top Flange:ISO5211

Face to Face:EN558-1 series 13,ISO5752 Series 13


Name

Material

Body

Cast Iron  Ductile Iron  Carbon Steel

Disc

Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze

Shaft

Stainless Steel  Monel K500

Seat

BUNA  NBR  EPDM  VITON  PTFE  HEPDM  Neoprene  Hypalon Natural rubber


Product form
